Vision Inspection System

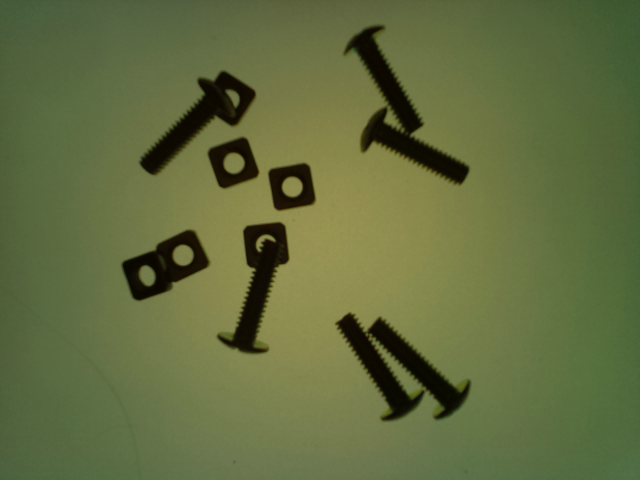

This system was created when I was taking CAT300 & CAT301. This is a system that I and my teammates created to inspection partially occluded objects using cross-correlation template matching.

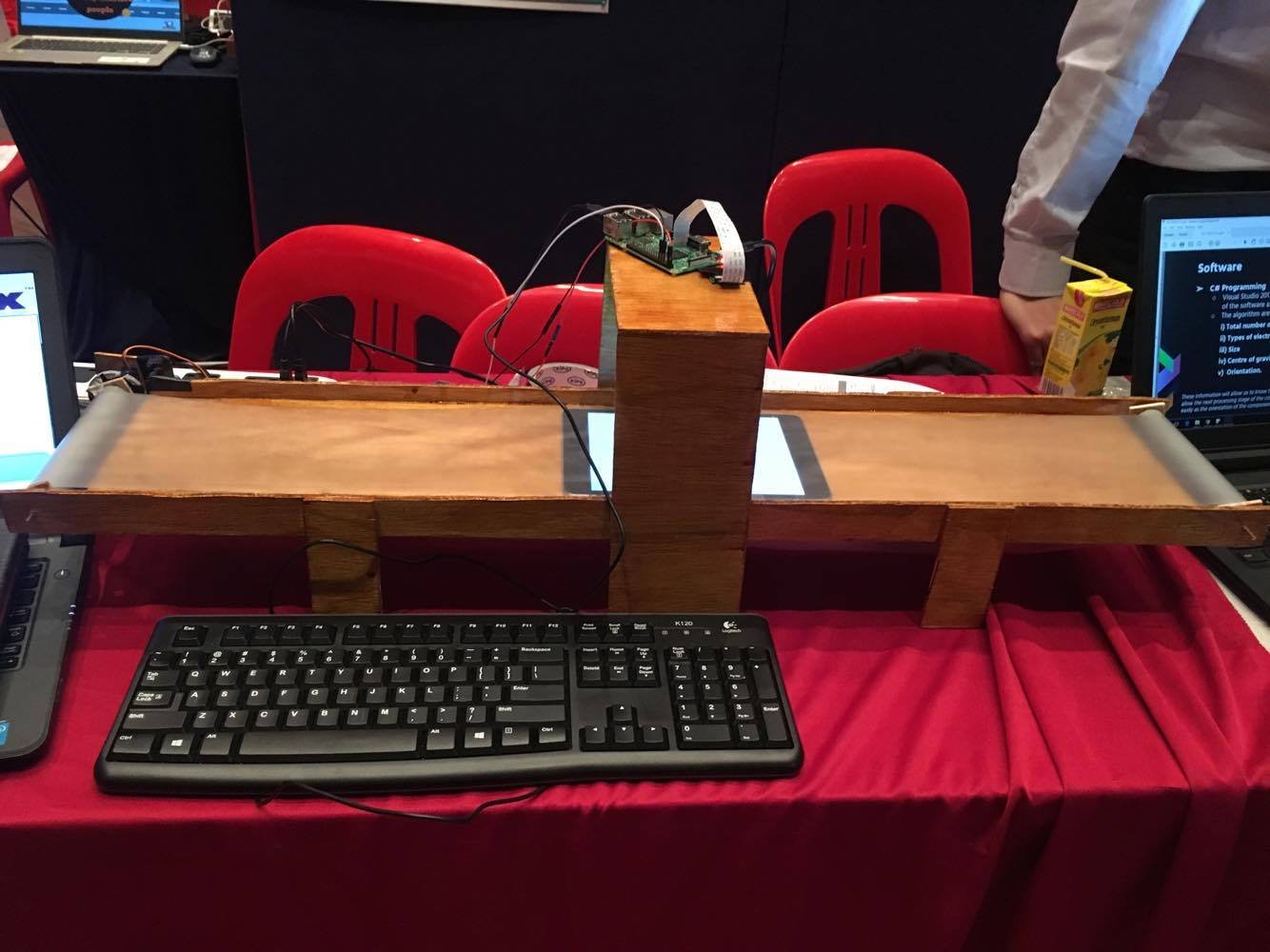

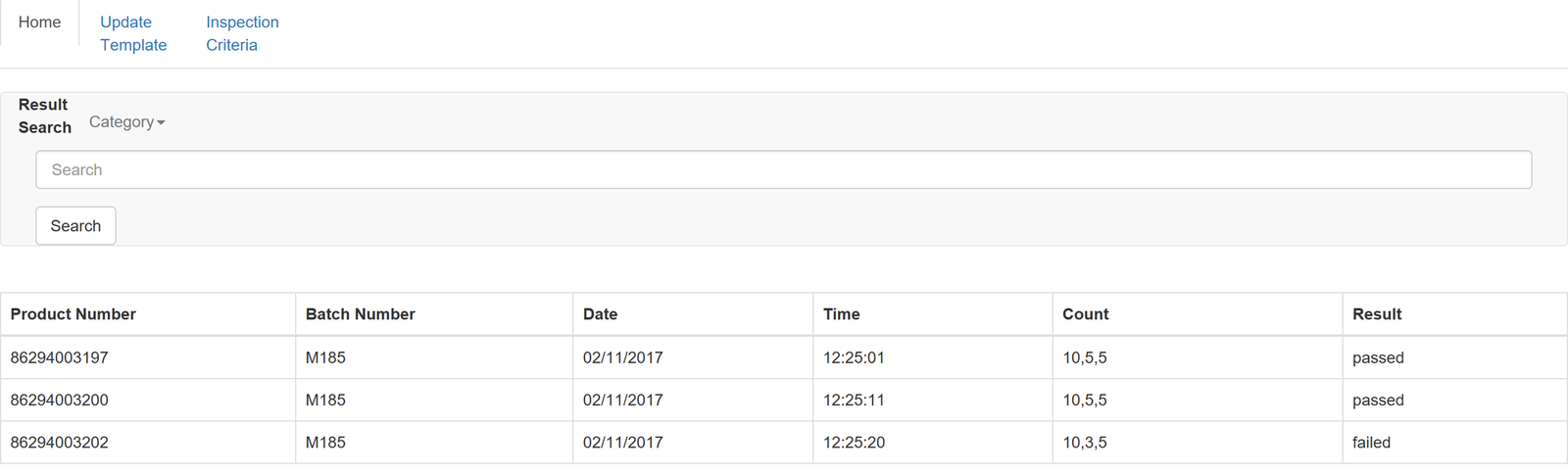

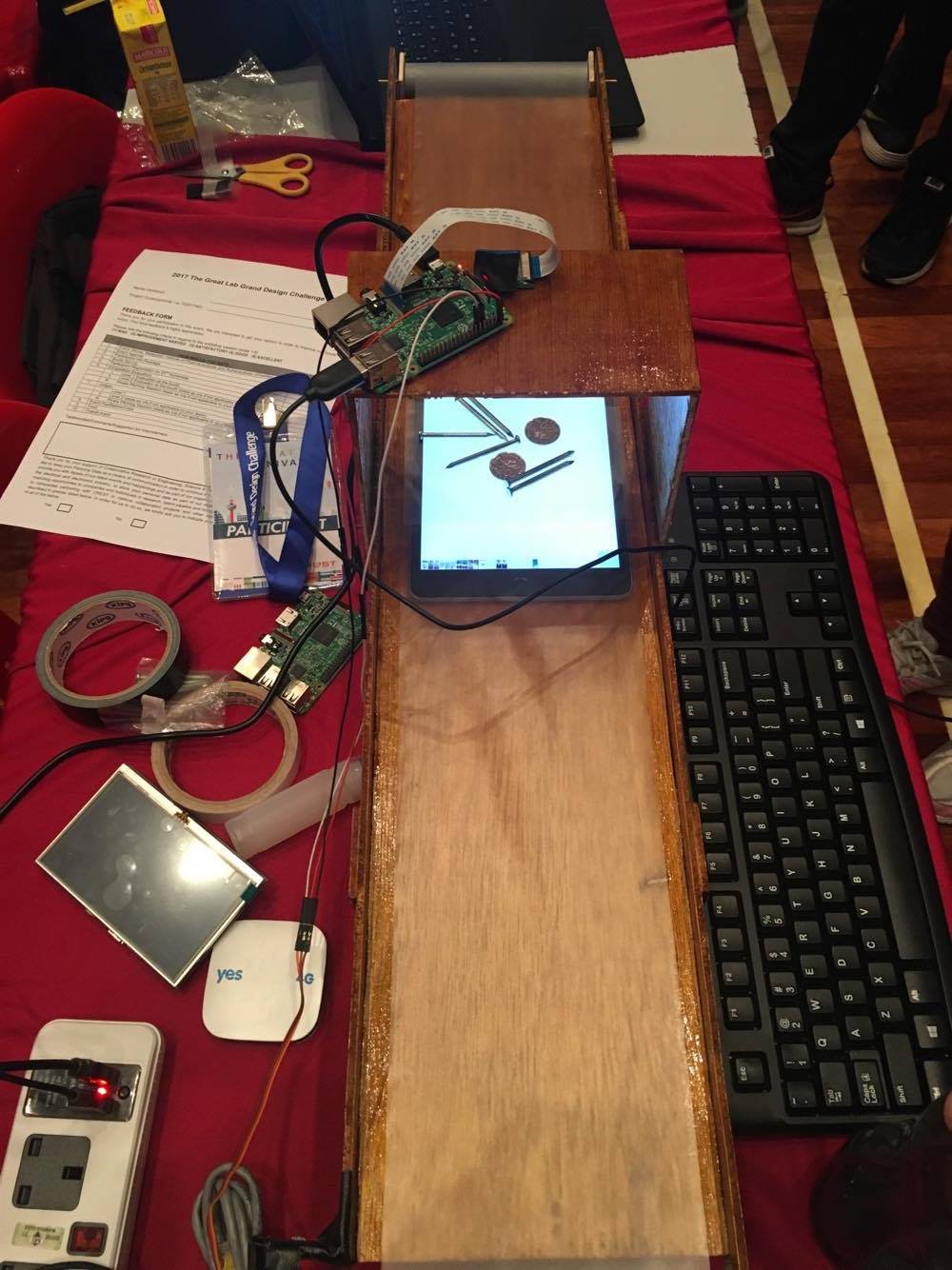

The system are using tamplate matching algorithm to identify the objects that are partially occluded between each others. The users can preset the template of objects throught the web interface and start inspection to get the results. The servo motor will move the items in the DIY conveyer belt toward the camera module and the camera module attached to Rasphberry Pi will take the photo and send to server to process and identify.
